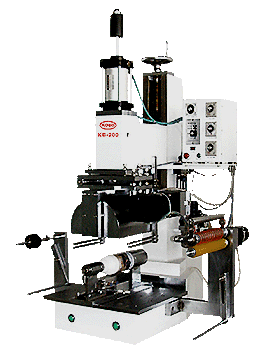

| SPECIFICATIONS | KB-200 |
| Max. Printing Area (Flat) |
8 x 13.8 inch
200 x 350 mm |
| Max Length of Rubber Roller |
8 inch / 200 mm
|
| Size of Hot Plate |
N / A
|
| Work Table Size | 14.2 x 16.9 inch 360 x 430 mm |
| Max. Pressure |
660 Lbs / 300 kg |
| Max. Head Stroke |
2.8 inch / 70 mm
|
| Max. Table Stroke | 13.8 inch / 350 mm |
| Max. Opening (Flat) | 10 inch / 250 mm |
| Max. Opening (Cylindrical) | 11.8 inch / 300 mm |
| Pump Capality | N / A |
| Oil Cylinder Max. Pressure | N / A |
| Voltage Supply | 220 V |
| Heater Capacity | 2,200 W |
| Foil Controller | Motor Drive |
| Thermo Controller | 0 - 750oF / 0 - 400oC |
| Net Weight | 421 Lbs / 191 Kg |
| Gross Weight | 576 Lbs / 257 Kg |
| Dimension (L x W x H) |
35 x 28 x 51 inch |
| Box Size (L x W x H) |
28 x 25 x 27 inch |
| Standard Roller comes with Machine |
4 inch / 100 mm
|
 |
