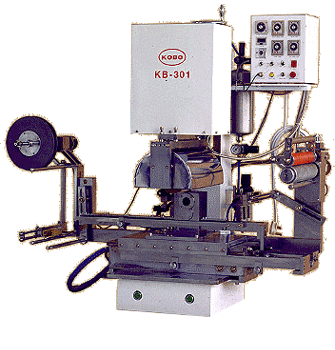

| SPECIFICATIONS | KB-301 |
| Size of Hot Plate | ---- |
| Length of Rubber Roller | 8" |
| Work Table Size | 250 x 420 mm |
| Max. Pressure | 200 Kg |
| Max. Head Stroke | 80 mm |
| Max. Table Stroke | 350 mm |
| Max. Opening (Flat) | 300 mm |
| Max. Opening (Cylindrical) | 220 mm |
| Voltage Supply | 220 V |
| Heater Capacity | 3,000 W |
| Foil Controller | Motor Drive |
| Thermo Controller | 0 - 400oC |
| Net Weight | 290 Kg |
| Gross Weight | 440 Kg |
| Dimension (L x W x H) | 1200 x 760 x 1200 mm |
| Standard Tubes come with Machine | 4" |
 |
