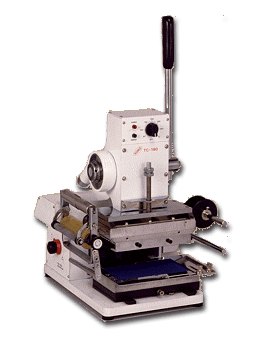

| SPECIFICATION | TC-180 |
| Size of Hot Plate | 4 x 7 inch 100 x 180 mm |
| Work Table Size | 5 x 8 inch 125 x 205 mm |
| Max. Pressure | Manual |
| Max. Head Stroke | 0 - 2 inch 0 - 50 mm |
| Max. Opening (Flat) | 2 inch 50 mm |
| Voltage Supply | 110 V / 220 V / 240 V |
| Heater Capacity | 400 W |
| Foil Controller | Mechanism |
| Thermo Controller | 0-570oF 0-300oC |
| Net Weight (kg) | 42 Lbs 19 Kg |
| Gross Weight (kg) | 48.5 Lbs 22 Kg |
| Dimension (L x W x H) | 13.5 x 13.5 x 15
inch 340 x 350 x 380 mm |
| Box Size (L x W x H) | 14 x 19.5 x 22 inch 360 x 380 x 430 mm |
 |
