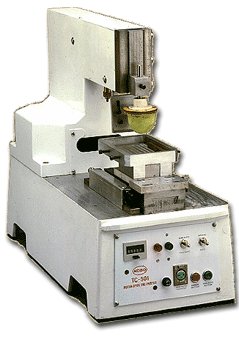

| SPECIFICATION | TC-501 |
| Descriptions | Motor-Driver Pad Printer |
| Work Table Size | 50 x 80 mm |
| Max. Print Area | 50 x 75 mm |
| Max. Head Stroke | 30 mm |
| Max. Opening | 60 mm |
| Max. Speed Prints / hr. | 1500 |
| Ink Well Size | 75 x 125 mm |
| Power Supply | 110 V / 220 V 50Hz 110W |
| Air Consumption | ---- |
| Net Weight (kg) | 44 |
| Gross Weight (kg) | 56 |
| Dimension (L x W x H) | 540 x 260 x 480 mm |
 |
