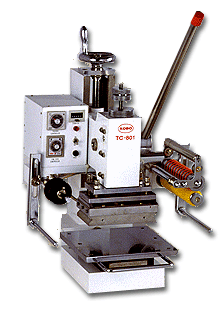

| SPECIFICATION | TC-801 |
| Size of Hot Plate | 4 x
7 inch 100 x 180 mm |
| Work Table Size | 8.6 x 9.5 inch 220 x 240 mm |
| Max. Pressure | 660 Lbs 300 Kg |
| Max. Head Stroke | 1.5 inch 40 mm |
| Max. Opening (Flat) | 5 inch 125 mm |
| Voltage Supply | 110 V / 220 V / 240 V |
| Heater Capacity | 400 W |
| Foil Controller | Motor Drive |
| Thermo Controller | 0-570oF 0-400oC |
| Net Weight (kg) | 154 Lbs 70 Kg |
| Gross Weight (kg) | 227 Lbs 103 Kg |
| Dimension (L x W x H) | 19.6 x 17 x 27 inch 500 x 430 x 690 mm |
| Box Size (L x W x H) | 30 x 23 x 29.5 inch 760 x 590 x 750 mm |
 |
