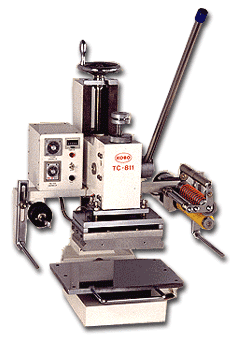

| SPECIFICATION | TC-811 |
| Size of Hot Plate | 5 x 8.6 inch 125 x 220 mm |
| Work Table Size | 9.5 x 12.5 inch 240 x 320 mm |
| Max. Pressure | 660 Lbs 300 Kg |
| Max. Head Stroke | 1.6 inch 40 mm |
| Max. Opening (Flat) | 8 inch 210 mm |
| Voltage Supply | 110 V / 220 V / 240 V |
| Heater Capacity | 800 W |
| Foil Controller | Motor Drive |
| Thermo Controller | 0-750oF 0-400oC |
| Net Weight (kg) | 205 Lbs 93 Kg |
| Gross Weight (kg) | 280 Lbs 127 Kg |
| Dimension (L x W x H) | 21 x 21 x 28 inch 530 x 530 x 706 mm |
| Box Size (L x W x H) | 25 x 30 x 31 inch 635 x 760 x 790 mm |
 |
