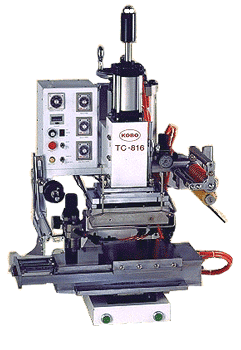

| SPECIFICATION | TC-816 |
| Size of Hot Plate | 5 x 8.6 inch 125 x 220 mm |
| Work Table Size | 9.5 x 12.5 inch 240 x 320 mm |
| Diameter of Rotary Table | N / A |
| Max. Pressure | 440 Lbs 200 Kg |
| Max. Head Stroke | 2.4 inch 60 mm |
| Max. Opening (Flat) | 8.6 inch 220 mm |
| Max. Opening (Cylindrical) | 5.5 inch 140 mm |
| Voltage Supply | 110 V / 220 V / 240 V |
| Heater Capacity | 1,000 W |
| Foil Controller | Motor Drive |
| Thermo Controller | 0-750oF 0-400oC |
| Net Weight (kg) | 291 Lbs 132 Kg |
| Gross Weight (kg) | 392 Lbs 178 Kg |
| Dimension (L x W x H) | 19 x 19 x 34 inch 480 x 480 x 860 mm |
| Box Size (L x W x H) | 35 x 26 x 45 inch 900 x 660 x 1,150 mm |
 |
