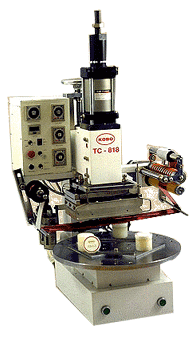

| SPECIFICATION | TC-818 |
| Size of Hot Plate | 5 x 8.6 inch 125 x 220 mm |
| Work Table Size | N / A |
| Diameter of Rotary Table | 16 inch 400 mm |
| Max. Pressure | 660 Lbs 300 Kg |
| Max. Head Stroke | 2.4 inch 60 mm |
| Max. Opening (Flat) | 6 inch 160 mm |
| Max. Opening (Cylindrical) | N / A |
| Voltage Supply | 110 V / 220 V / 240 V |
| Heater Capacity | 800 W |
| Foil Controller | Motor Drive |
| Thermo Controller | 0-750oF 0-400oC |
| Net Weight (kg) | 293 Lbs 133 Kg |
| Gross Weight (kg) | 400 Lbs 181 Kg |
| Dimension (L x W x H) | 19.5 x 24 x 35 inch 500 x 600 x 900 mm |
| Box Size (L x W x H) | 32 x 27 x 45 inch 820 x 690 x 1,140 mm |
 |
