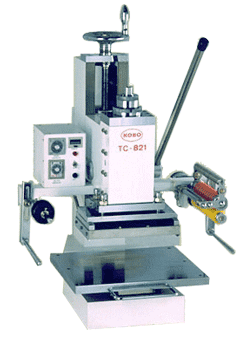

| SPECIFICATION | TC-821 |
| Size of Hot Plate | 6 x 10 inch 160 x 260 mm |
| Work Table Size | 12.5 x 15 inch 320 x 380 mm |
| Diameter of Rotary Table | N / A |
| Max. Pressure | 4,400 Lbs 2,000 Kg |
| Max. Head Stroke | 1.2 - 2 inch 30 - 50 mm |
| Max. Opening (Flat) | 7.5 inch 190 mm |
| Max. Opening (Cylindrical) | N / A |
| Voltage Supply | 110 V / 220 V / 240 V |
| Heater Capacity | 1,500 W |
| Foil Controller | Motor Drive |
| Thermo Controller | 0-750oF 0-400oC |
| Net Weight (kg) | 370 Lbs 167 Kg |
| Gross Weight (kg) | 460 Lbs 210 Kg |
| Dimension (L x W x H) | 26 x 23 x 34.5 inch 660 x 580 x 880 mm |
| Box Size (L x W x H) | 30 x 30 x 37 inch 760 x 760 x 940 mm |
 |
