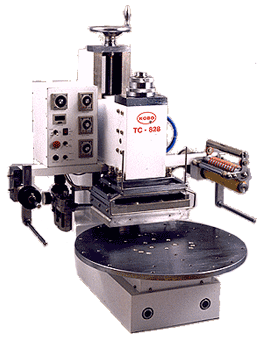

| SPECIFICATION | TC-828 |
| Size of Hot Plate | 6 x 10 inch 160 x 260 mm |
| Work Table Size | N / A |
| Diameter of Rotary Table | 19.6 inch 500 mm |
| Max. Pressure | 4,400 Lbs 2,000 Kg |
| Max. Head Stroke | 1.2 - 2 inch 30 - 50 mm |
| Max. Opening (Flat) | 6 inch 160 mm |
| Max. Opening (Cylindrical) | N / A |
| Voltage Supply | 110 V / 220 V / 240 V |
| Heater Capacity | 1,500 W |
| Foil Controller | Motor Drive |
| Thermo Controller | 0-750oF 0-400oC |
| Net Weight (kg) | 485 Lbs 220 Kg |
| Gross Weight (kg) | 573 Lbs 260 Kg |
| Dimension (L x W x H) | 27 x 21 x 35 inch 680 x 540 x 880 mm |
| Box Size (L x W x H) | 29 x 30 x 37 inch 740 x 760 x 940 mm |
 |
