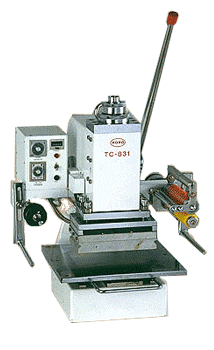

| SPECIFICATION | TC-831 |
| Size of Hot Plate | 6 x 10 inch 160 x 260 mm |
| Work Table Size | 12.5 x 14 inch 320 x 350 mm |
| Max. Pressure | 4,400 Lbs 2,000 Kg |
| Max. Head Stroke | 1.2 - 2 inch 30 - 50 mm |
| Max. Opening (Flat) | 1.5 inch 40 mm |
| Voltage Supply | 110 V / 220 V / 240 V |
| Heater Capacity | 800 W |
| Foil Controller | Motor Drive |
| Thermo Controller | 0-570oF 0-400oC |
| Net Weight (kg) | 280 Lbs 127 Kg |
| Gross Weight (kg) | 360 Lbs 163 Kg |
| Dimension (L x W x H) | 25 x 20 x 24 inch 630 x 510 x 620 mm |
| Box Size (L x W x H) | 30 x 30 x 30 inch 760 x 760 x 760 mm |
 |
