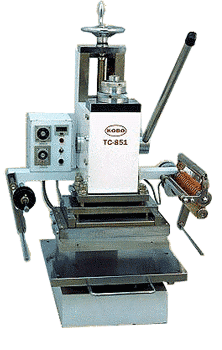

| SPECIFICATION | TC-851 |
| Size of Hot Plate | 12 x 7.6 inch 300 x 200 mm |
| Work Table Size | 12.5 x 15 inch 320 x 375 mm |
| Diameter of Rotary Table | N / A |
| Max. Pressure | 5,500 Lbs 2,500 Kg |
| Max. Head Stroke | 1.2 - 2 inch 30 - 50 mm |
| Max. Opening (Flat) | 7.5 inch 190 mm |
| Max. Opening (Cylindrical) | N / A |
| Voltage Supply | 220 V |
| Heater Capacity | 3,000 W |
| Foil Controller | Motor Drive |
| Thermo Controller | 0-750oF 0-400oC |
| Net Weight (kg) | 450 Lbs 204 Kg |
| Gross Weight (kg) | 540 Lbs 244 Kg |
| Dimension (L x W x H) | 26 x 23 x 36 inch 660 x 580 x 910 mm |
| Box Size (L x W x H) | 32 x 30 x 39 inch 810 x 760 x 1000 mm |
 |
