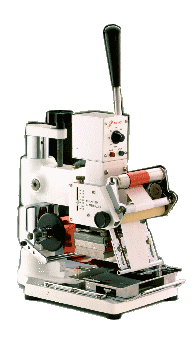

| SPECIFICATION | TC-900 |
| Size of Hot Plate | 2.4 x 3.5 inch 60 x 90 mm |
| Work Table Size | 4 x 6 inch 105 x 150 mm |
| Max. Pressure | Manual |
| Max. Head Stroke | 0 - 1.18 inch 0 - 30 mm |
| Max. Opening (Flat) | 2 inch 50mm |
| Voltage Supply | 110 V / 220 V / 240 V |
| Heater Capacity | 300 W |
| Foil Controller | Mechanism |
| Thermo Controller | 0-390oF 0-200oC |
| Net Weight (kg) | 18 Lbs 8.2 Kg |
| Gross Weight (kg) | 21 Lbs 9.2 Kg |
| Dimension (L x W x H) | 10 x 6.5 x 13.5 inch 260 x 160 x 340 mm |
| Box Size (L x W x H) | 13.5 x 9 x 14 inch 340 x 230 x 360 mm |
 |
