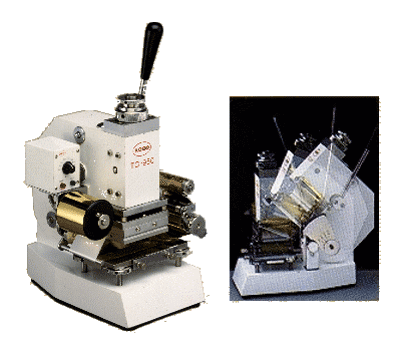

| SPECIFICATION | TC-950 |
| Size of Hot Plate | 2.4 x 3.5 inch 60 x 90 mm |
| Work Table Size | 4 x 6 inch 100 x 150 mm |
| Max. Pressure | 1,300 Lbs 600Kg |
| Max. Head Stroke | 0.4 - 0.8 inch 10 - 20 mm |
| Max. Opening (Flat) | 1.18 inch 30mm |
| Voltage Supply | 110 V / 220 V / 240 V |
| Heater Capacity | 300 W |
| Foil Controller | Mechanism |
| Thermo Controller | 0-390oF 0-200oC |
| Net Weight (kg) | 44 Lbs 20 Kg |
| Gross Weight (kg) | 48.5 Lbs 22 Kg |
| Dimension (L x W x H) | 11 x 9.5 x 13.5 inch 280 x 240 x 340 mm |
| Box Size (L x W x H) | 12.5 x 16.5 x 16.5 inch 360 x 420 x 410 mm |
 |
